LM Shaft Support

Ensure strong and stable support for linear motion systems with premium-quality LM Shaft Supports from VIVEK AUTOMATION. Designed to provide rigid mounting and accurate alignment, our shaft supports enhance the performance and lifespan of linear shafts and bearings.

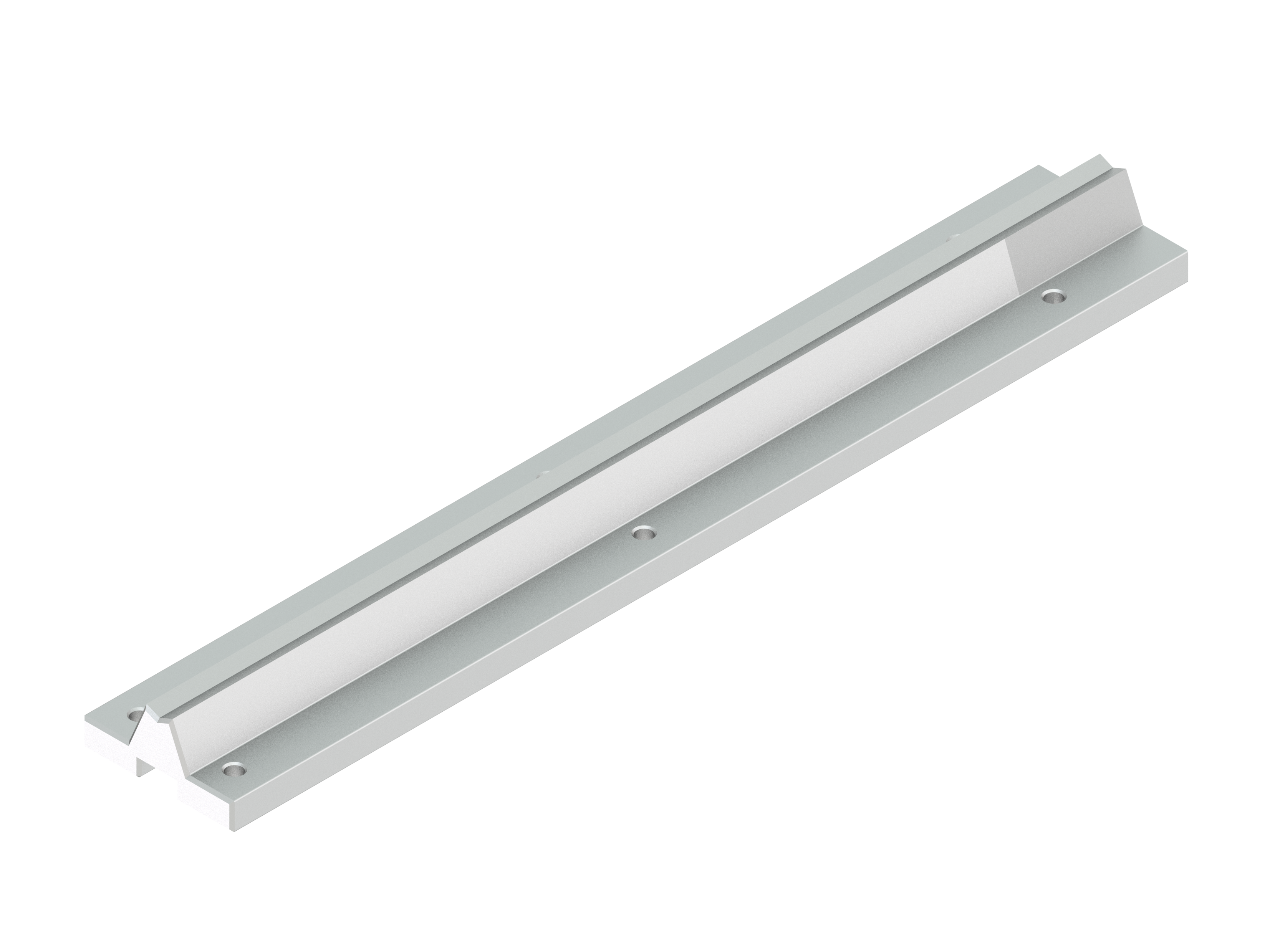

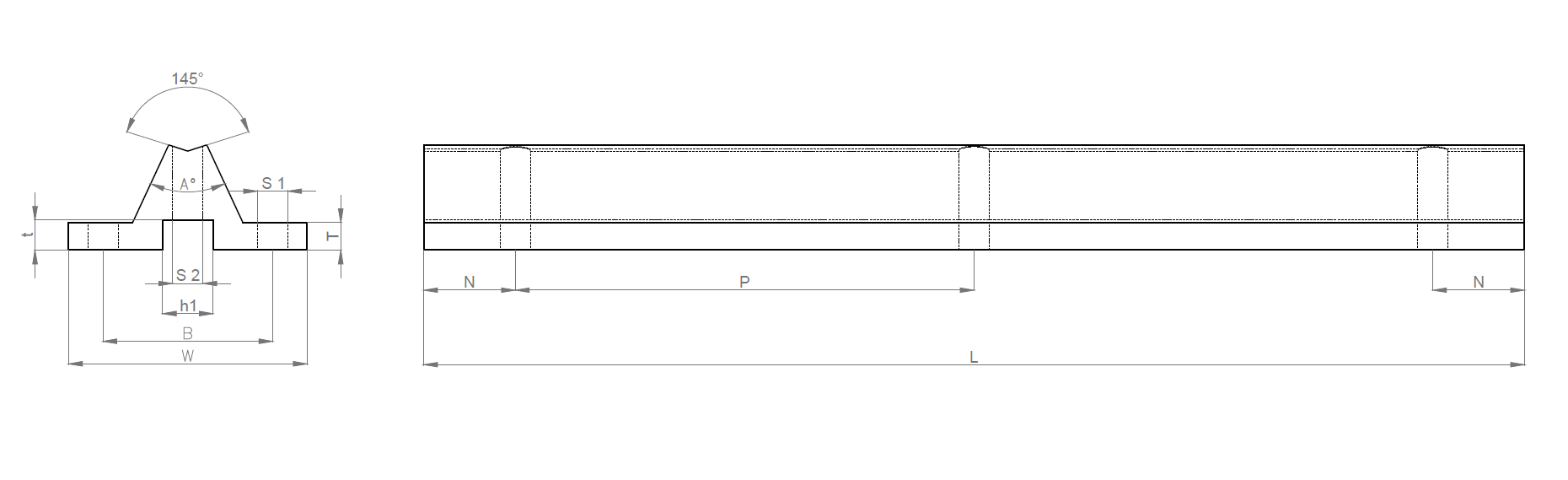

Model No.	Shaft Dia D	H(± 0.2)	E	W(± 0.2)	L	T(± 0.1)	A	B	N	P	S 2	S 1	h1(± 0.1)	t
GSSP 12 E	12	22	20	40	4000	5	50	29	12.5	75	4.5	4.5	8	4.5
GSSP 16 E	16	26	22.5	45	4000	5	50	33	50	150	5.5	5.5	9.5	6
GSSP 20 E	20	32	26	52	4000	6	50	37	50	150	6.6	6.6	11	6.5
GSSP 25 E	25	36	28.5	57	4000	6	50	42	100	200	9	6.6	14	8.5
GSSP 30 E	30	42	34.5	69	4000	7	50	51	100	200	11	9	17	10.5
GSSP 40 E	40	50	36.5	73	4000	8	50	55	50	300	11	9	17	10.5
GSSP 50 E	50	60	42	84	4000	9	46	63	50	300	13	11	19	12.5
GSSP 60 E	60	68	47	94	4000	10	46	72	50	300	15	11	22	13
GSSP 80 E	80	86	58	116	4000	12	46	92	50	300	17	12	25	15

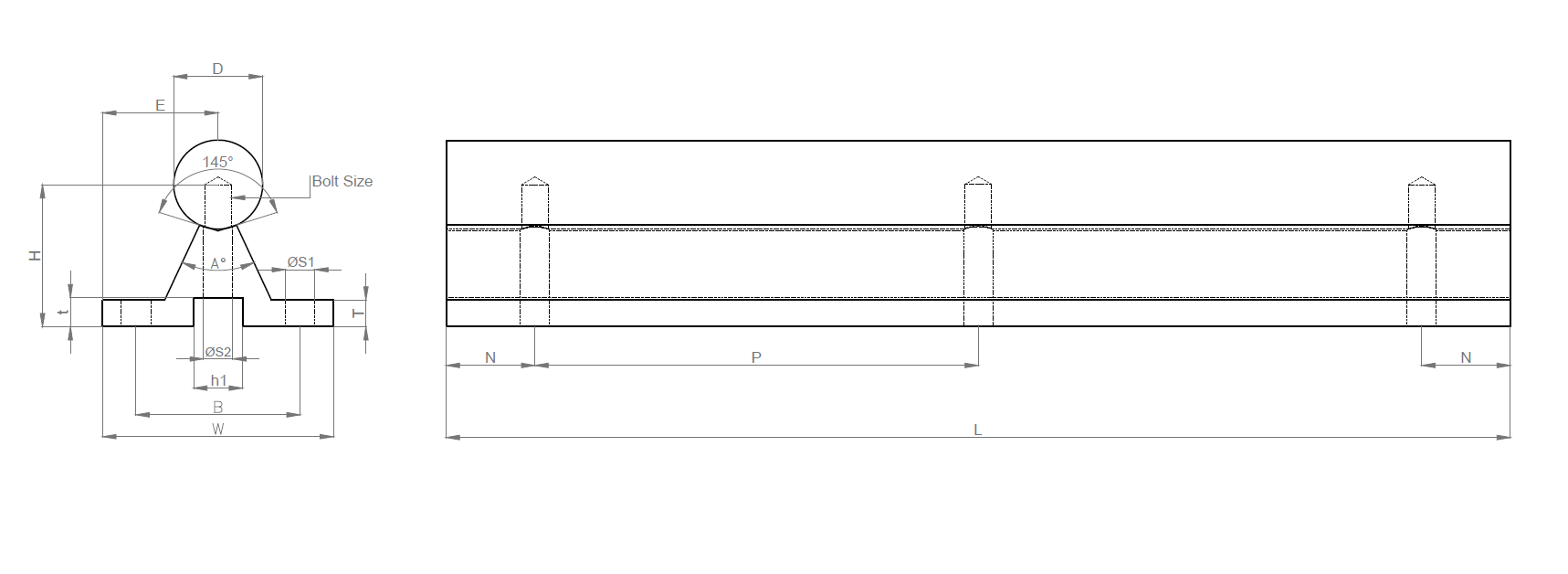

Model No.	Shaft Dia D	H(± 0.2)	E	W(± 0.2)	L	T(± 0.1)	A	B	N	P	S 2	S 1	h1(± 0.1)	t	Bolt Size
GSWSP 12 E	12	22	20	40	4000	5	50	29	12.5	75	4.5	4.5	8	4.5	M4X20
GSWSP 16 E	16	26	22.5	45	4000	5	50	33	50	150	5.5	5.5	9.5	6	M5X20
GSWSP 20 E	20	32	26	52	4000	6	50	37	50	150	6.6	6.6	11	6.5	M6X25
GSWSP 25 E	25	36	28.5	57	4000	6	50	42	100	200	9	6.6	14	8.5	M8X27
GSWSP 30 E	30	42	34.5	69	4000	7	50	51	100	200	11	9	17	10.5	M10X30
GSWSP 40 E	40	50	36.5	73	4000	8	50	55	50	300	11	9	17	10.5	M10X39
GSWSP 50 E	50	60	42	84	4000	9	46	63	50	300	13	11	19	12.5	M12X47
GSWSP 60 E	60	68	47	94	4000	10	46	72	50	300	15	11	22	13	M14X50
GSWSP 80 E	80	86	58	116	4000	12	46	92	50	300	17	12	25	15	M16X60

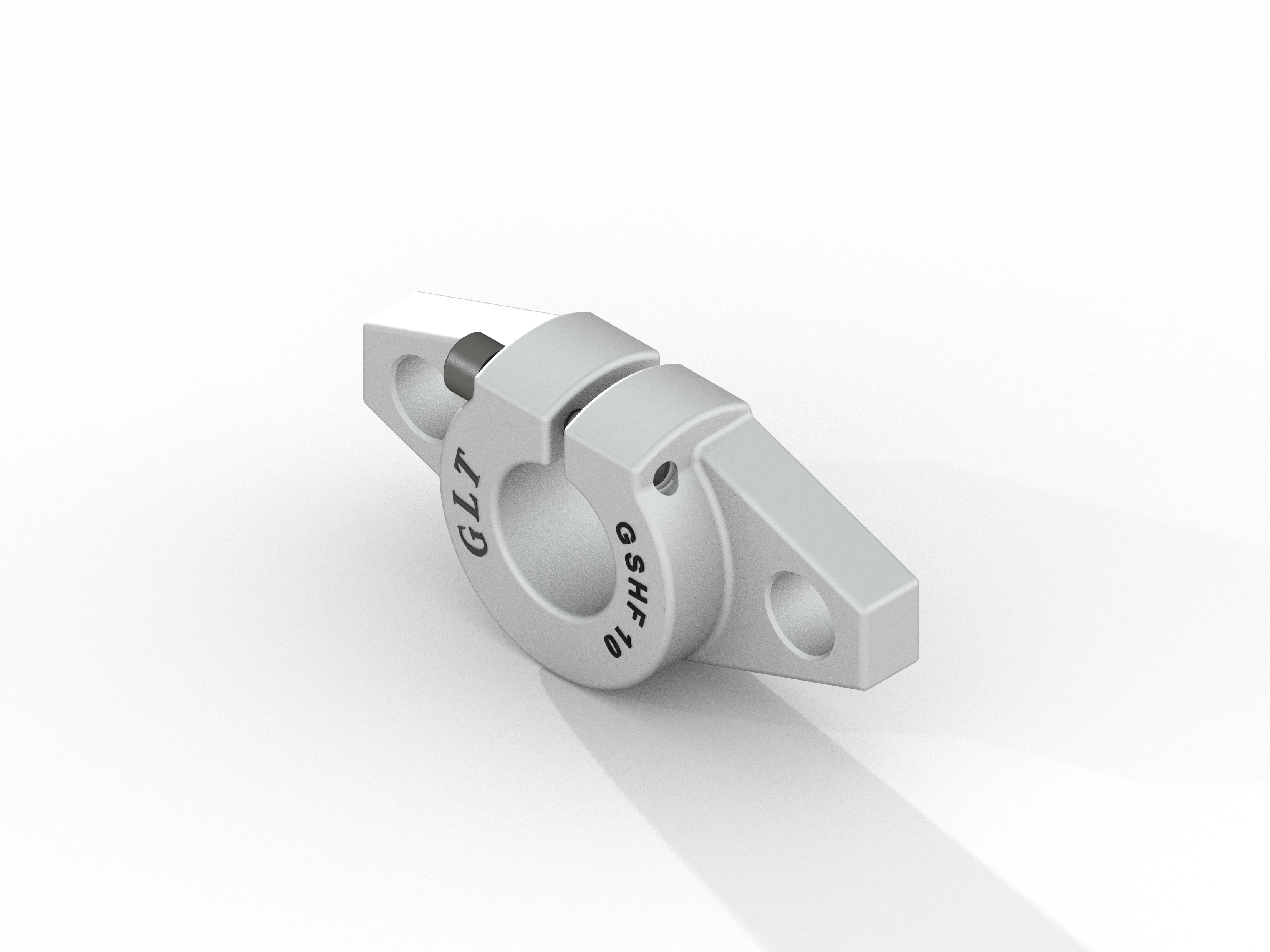

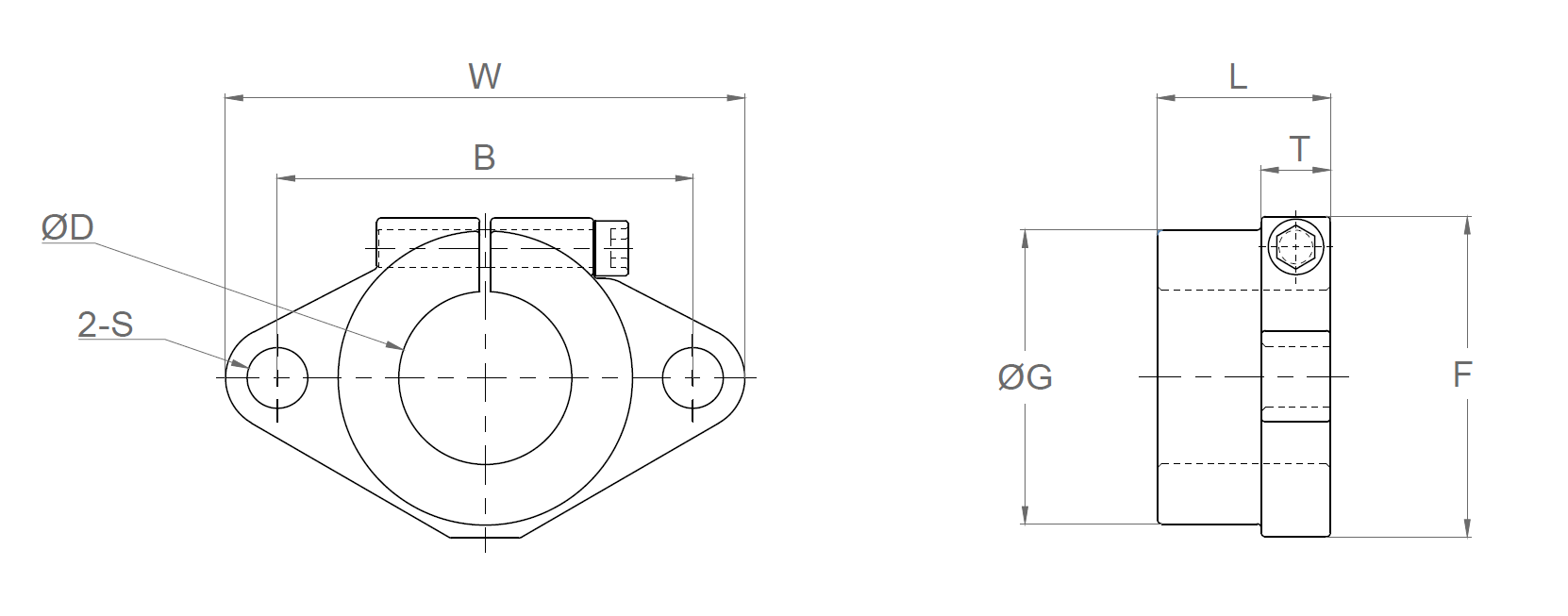

Model No.	W	L	T	F	G	B	S	Adjusting Bolt Size	Weight (g)
GSHF 10	43	10	5	24	20	32	5.5(M5)	M4	13
GSHF 12	47	13	7	28	25	36	5.5(M5)	M4	20
GSHF 13	47	13	7	28	25	36	5.5(M5)	M4	20
GSHF 16	50	16	8	31	28	40	5.5(M5)	M4	27
GSHF 20	60	20	8	37	34	48	7(M6)	M5	40
GSHF 25	70	22	10	42	40	56	7(M6)	M6	60
GSHF 30	80	30	12	50	46	64	9(M8)	M6	110
GSHF 35	92	35	14	58	50	72	12(M10)	M8	380
GSHF 40	102	40	16	67	56	80	12(M10)	M10	510
GSHF 50	122	50	19	83	70	96	14(M12)	M12	890
GSHF 60	140	60	23	95	82	112	14(M12)	M12	1500

Model No.	h	E	W	L	F	G	P	B	S	Clamping Bolt	Mounting Bolt	Weight (g)

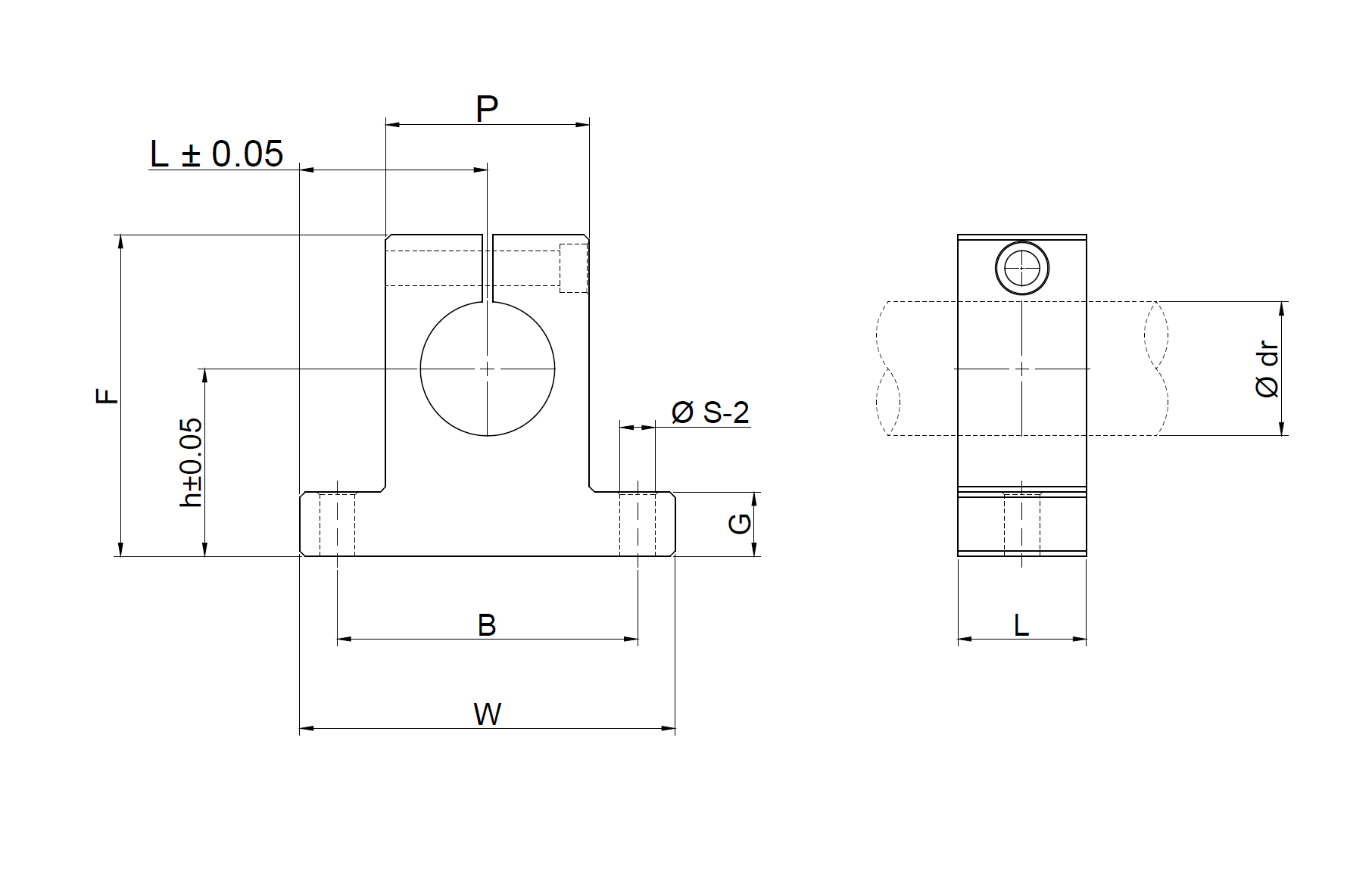

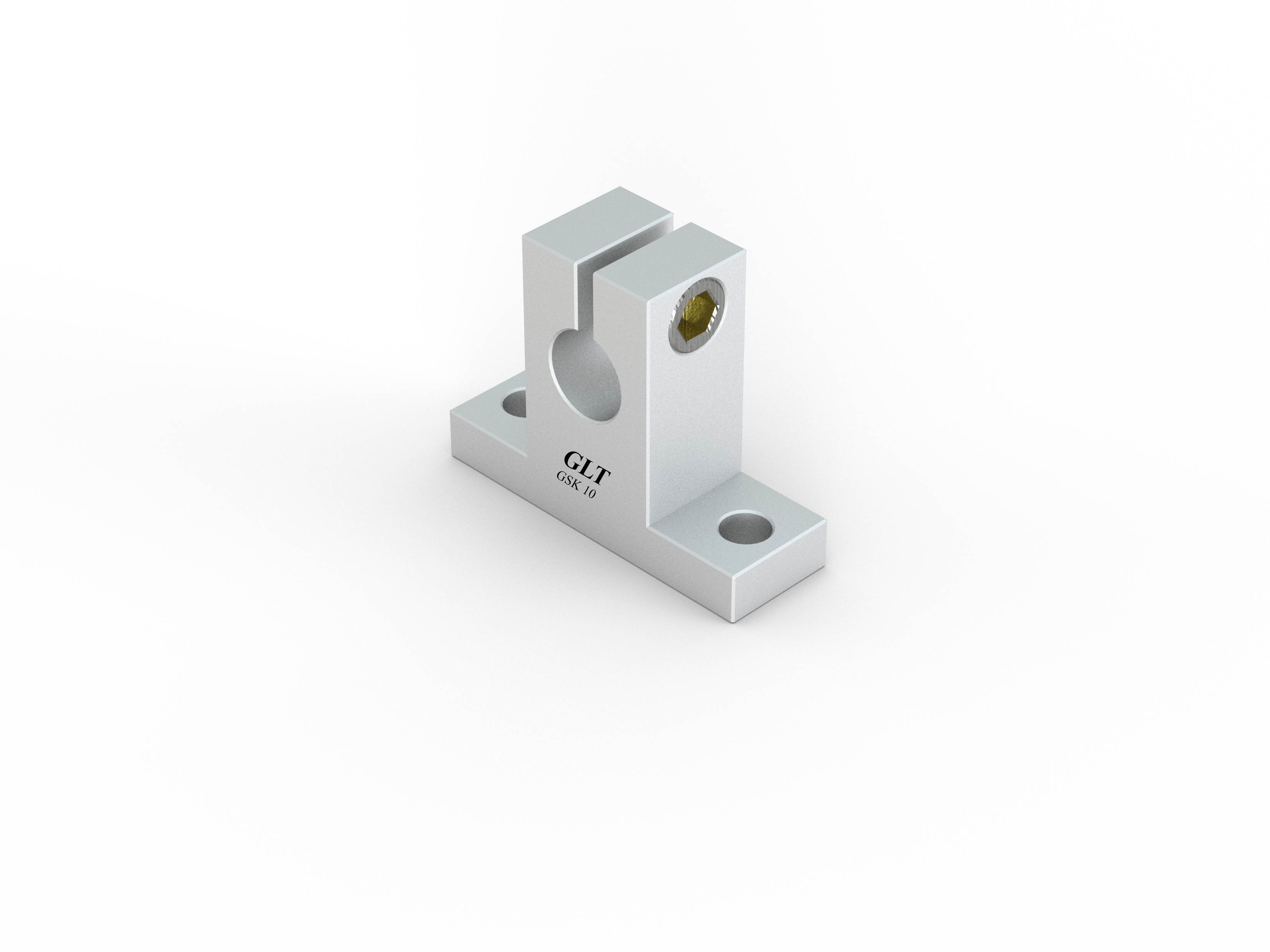

GSK 8	20	21	42	14	32.8	6	18	32	5.5	M4	M5	24
GSK 10	20	21	42	14	32.8	6	18	32	5.5	M4	M5	24
GSK 12	23	21	42	14	37.5	6	20	32	5.5	M4	M5	30
GSK 13	23	21	42	14	37.5	6	20	32	5.5	M4	M5	30
GSK 16	27	24	48	16	44	8	25	38	5.5	M4	M5	40
GSK 20	31	30	60	20	51	10	30	45	6.6	M5	M6	70
GSK 25	35	35	70	24	60	12	38	56	6.6	M6	M6	130
GSK 30	42	42	84	28	70	12	44	64	9	M6	M8	180
GSK 35	50	49	98	32	82	15	50	74	11	M8	M10	270
GSK 40	60	57	114	36	96	15	60	90	11	M8	M10	420
GSK 50	70	63	126	40	120	18	74	100	14	M12	M12	750
GSK 60	80	74	148	45	136	18	90	120	14	M12	M12	1,100
